Home / Machine Models / Factory Cat Model 34 /

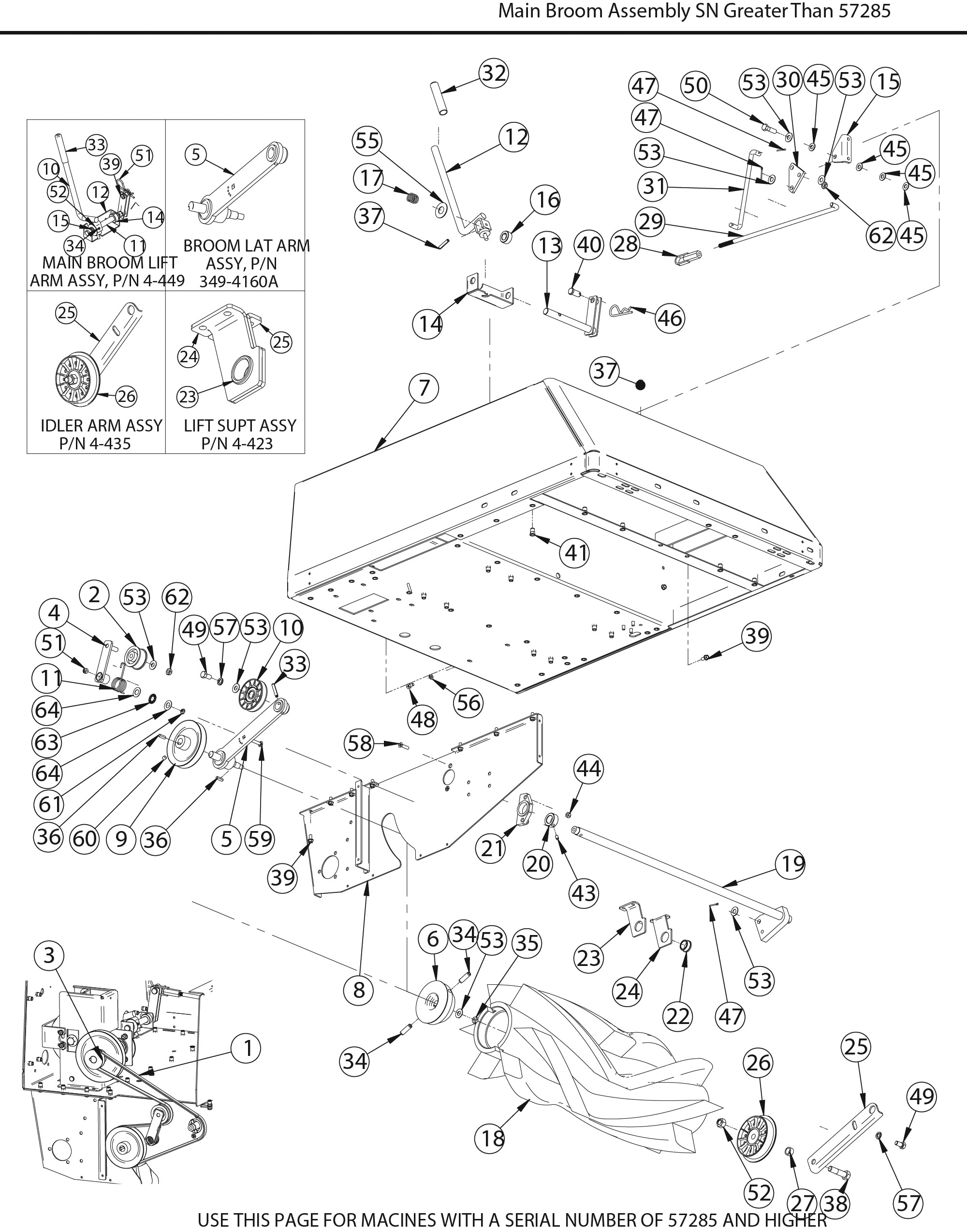

Factory Cat Model 34 - Main Broom Assy (SN Greater Than 57285)

×
GridList53 items 12▶
    Product Name   Item #   Price   Select Qty
Factory Cat OEM Belt, Ax48   #1 - Factory Cat OEM Belt, Ax48 FC349-3020  $47.20
    #2 - Factory Cat OEM Idler Pulley, 3/4" Wide FC349-3170  $45.70
Factory Cat OEM Pulley, 2.1 Od (4L) W/ Two Set Screws   #3 - Factory Cat OEM Pulley, 2.1 Od (4L) W/ Two Set Screws FC349-3200  $36.30
    #5 - Factory Cat OEM Main Broom Lateral Arm w/ Bearing FC349-4160A  $221.10
    #6 - Factory Cat OEM Broom Driver FC349-4200  $74.10
    #8 - Factory Cat OEM Panel,RH Inner FC4-113  $149.50
    #9 - Factory Cat OEM Main Broom Driven Pulley FC4-316  $61.00
Factory Cat OEM Main Broom Idler Pulley (W/ Integral Pulley)   #10 - Factory Cat OEM Main Broom Idler Pulley (W/ Integral Pulley) FC4-318  $23.60
    #12 - Factory Cat OEM Lever,Broom Lift FC4-376  $124.80
    #13 - Factory Cat OEM Shaft,Lift,Main Broom FC4-377  $129.00
    #14 - Factory Cat OEM Lever,Lift,Main Broom,LH Base FC4-380  $45.90
    #15 - Factory Cat OEM Bracket,Main Broom Rotary Link FC4-382  $23.00
    #17 - Factory Cat OEM Spring,Broom Lift Lever FC4-386  $8.10
Factory Cat OEM Main Broom-Union/Steel   #18 - Factory Cat OEM Main Broom-Union/Steel FC4-401US  $268.00
    #19 - Factory Cat OEM Suspension Arm Main Broom w/ro FC4-410  $317.80
    #21 - Factory Cat OEM Support, Main Broom Bearing,RH FC4-421  $39.90
Factory Cat OEM Flanged Bushing, 3/4"id x 1od x 1/2 long, Bro   #22 - Factory Cat OEM Flanged Bushing, 3/4"id x 1od x 1/2 long, Bro FC4-4230  $5.80
    #25 - Factory Cat OEM Arm,Main Broom Idler FC4-430  $51.20
Factory Cat OEM Main Broom Idler Drum & Bearing   #26 - Factory Cat OEM Main Broom Idler Drum & Bearing FC4-432  $51.30
Factory Cat OEM Main Broom Idler Drum Spacer   #27 - Factory Cat OEM Main Broom Idler Drum Spacer FC4-432A  $11.70
    #28 - Factory Cat OEM Link,Broom Lift Adjustable Down Pressure FC4-436  $39.90
    #29 - Factory Cat OEM Link,Long,Main Broom FC4-437  $49.40
    #30 - Factory Cat OEM Link,Rotary,Main Broom FC4-438  $17.90
    #31 - Factory Cat OEM Link,Crank,Main Broom FC4-439  $55.10
    #32 - Factory Cat OEM Handle Grip FC4-448  $6.10
    #33 - Factory Cat OEM Pin,Spring Roll,1/4"x1-1/2"L FCH-00103  $6.10
    #34 - Factory Cat OEM Spring Roll Pin 3/8 X 1-1/4 FCH-00105  $4.50
Factory Cat OEM Jam Nylok 3/8-24 Ss   #35 - Factory Cat OEM Jam Nylok 3/8-24 Ss FCH-0171004  $4.50
    #36 - Factory Cat OEM Machine Key 3/16 X 3/4 FCH-0953152  $4.50
    #38 - Factory Cat OEM Screw,Hex Cap,1/2-13x2" Zinc FCH-13211  $6.10
    #39 - Factory Cat OEM Screw, Hex Cap, 1/4-20x1/2" Serrated Washer Head FCH-19901  $6.10
    #41 - Factory Cat OEM Nut,Hex Crimp,1/4-20,Standard FCH-250HCN  $4.50
    #42 - Factory Cat OEM Screw,Set,#10-32x1" Cupped FCH-25283  $4.50
    #43 - Factory Cat OEM Cupped Point Set Screw, 1/4-20 x 3/8 FCH-25328  $6.10
    #45 - Factory Cat OEM Washer 3/8 X 3/4 Nylon FCH-4440024  $4.50
    #46 - Factory Cat OEM Pin,Cotter,1/2",Zinc FCH-45285  $6.10
    #47 - Factory Cat OEM Pin,Cotter,3/32"Wirex7/8"L Zinc FCH-65035  $4.50
    #48 - Factory Cat OEM Screw,Hex Cap,1/4-20x1/2" Stainless FCH-70001  $4.50
    #49 - Factory Cat OEM Screw,Hex Cap,3/8-16x3/4" Stainless FCH-70103  $4.50
    #50 - Factory Cat OEM Screw,Hex Cap,3/8-16x1-1/4" Stainless FCH-70107  $4.50
53 items 12▶
