Ripsaw Rotating Turbo Nozzle
Item #: HF1001857-030 / UPC #: 1001857-030
Ripsaw Rotating Turbo Nozzle #3.0
$414.70
GPM (Min): 1.5
GPM (Max): 2.7
Item #: HF1001857-040 / UPC #: 1001857-040
Ripsaw Rotating Turbo Nozzle #4.0
$414.70
GPM (Min): 2
GPM (Max): 3.6
Item #: HF1001857-050 / UPC #: 1001857-050
Ripsaw Rotating Turbo Nozzle #5.0
$414.70
GPM (Min): 2.5
GPM (Max): 4.5
Item #: HF1001857-060 / UPC #: 1001857-060
Ripsaw Rotating Turbo Nozzle #6.0
$461.50
GPM (Min): 3
GPM (Max): 5.4
Item #: HF1001857-100 / UPC #: 1001857-100
Ripsaw Rotating Turbo Nozzle #10.0
$484.90
GPM (Min): 5
GPM (Max): 8.9
Item #: HF1001857-120 / UPC #: 1001857-120
Ripsaw Rotating Turbo Nozzle #12.0
$461.50
GPM (Min): 6
GPM (Max): 10.7
Item #: HF1001857-080 / UPC #: 1001857-080
Ripsaw Rotating Turbo Nozzle #8.0
$461.50
GPM (Min): 4
GPM (Max): 7.2
More from Hydra-Flex, Inc.About this item
Dig Faster. Save Water.

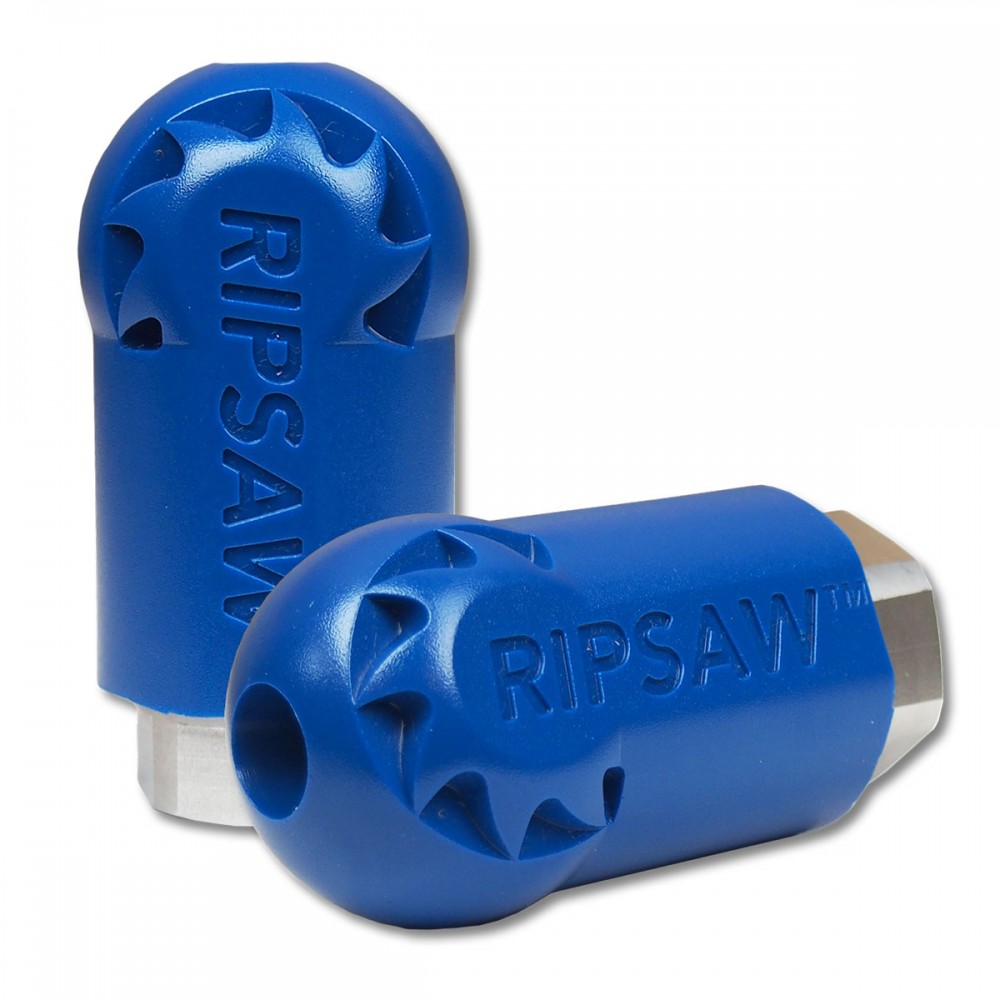

The Ripsaw Rotating Turbo nozzle is specifically designed and engineered for the rugged Hydro-Excavation industry. It’s cone shaped flow pattern is ideal for potholing applications.
- Performance – The Ripsaw blasts a 0-degree straight water stream at up to 3200 PSI while rotating at an optimal speed to provide an 18-degree cone of coverage. The cone-shaped flow pattern is ideally suited for potholing applications.
- Durability – These heavy-duty, high impact nozzles are constructed with stainless steel housing and tungsten carbide wear surfaces to withstand harsh environments and provide longer life than ceramic nozzles. Repair kits are also available for extended life and lower operating costs.
- Safety – Non-conductive urethane coating on the nozzle body protects users and sensitive underground utilities. Select from the traditional coating or upgrade to the new heavy-duty coating – a special formulation designed for use in extreme environments including frost, shale, and other rocky conditions.
- Efficiency– Greater impingement allows you to complete jobs faster or use a smaller nozzle size while getting the same impact as nozzles with higher GPM flow rates.
Specifications:
Minimum Inlet Pressure: 1,000 PSI (69 Bar)
Maximum Inlet Pressure: 3,200 PSI (220 Bar)
Maximum Water Temperature: 180°F (+82°C)
Housing Material: Stainless Steel
Coating Material: Urethane
Nozzle Tip Material: Tungsten Carbide
Inlet Connection Thread: 1/2" NPT
| Nozzle Size |
Flow Rate Chart (GPM) | |||||
|---|---|---|---|---|---|---|
| 1000 PSI |
1500 PSI |
2000 PSI |
2500 PSI |
3000 PSI |
3200 PSI |
|
| 3.0 | 1.5 | 1.8 | 2.1 | 2.4 | 2.6 | 2.7 |
| 4.0 | 2.0 | 2.4 | 2.8 | 3.2 | 3.5 | 3.6 |
| 5.0 | 2.5 | 3.1 | 3.5 | 4.0 | 4.3 | 4.5 |
| 6.0 | 3.0 | 3.7 | 4.2 | 4.7 | 5.2 | 5.4 |
| 8.0 | 4.0 | 4.9 | 5.7 | 6.3 | 6.9 | 7.2 |
| 10.0 | 5.0 | 6.1 | 7.1 | 7.9 | 8.7 | 8.9 |
| 12.0 | 6.0 | 7.3 | 8.5 | 9.5 | 10.4 | 10.7 |
Ripsaw Rotating Hydro-Excavation Nozzle from Hydra-Flex Product Intro
Related products
Product specifications
Manufacturer
Hydra-Flex, Inc.
Hose Thread (NPT)
1/2"
GPM (Min)
1.5
GPM (Max)
10.7
Min. Inlet Pressure (PSI)
1000
Max. Inlet Pressure (PSI)
3200
